HANDWIN PRECISION IND.CO.,LTD.- CHECKWEIGHER

This is perfect our awesome product High speed (230Pcs/Min) • High precision (±0.06 g) • High stability (±3Σ) dynamic checkweigher (Automatic Checkweigher – Weight Detector – Rechecker – Weight Sorter – Weight Detector – CHECKWEIGHER)

FEATURES CATALOGUE youtube google store Taiwan Trade

Features

our awesome product

01.

High-speed, high-precision, high-stability dynamic detction

• Automatic zero tracking technology ensures the weighing accuracy under the condition that the weight of the product changes on the weighing platform.
. Maintaining consistent level of accuracy over long-term use.

02.

Max weighing accuracy (3σ± 0.06g)

• Using high-rigidity, high-sensitivity weight sensor reduces vibration stabilization time, and equipped with high-speed CPU processor for high-accuracy weighing results.

03.

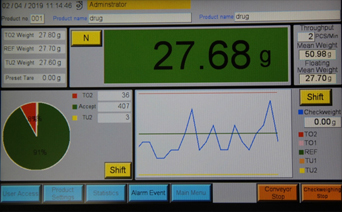

10.1 inch color TFT LCD display

•10.1 inch color TFT LCD display Full color touch screen, easy to view, easy to understand, easy to operate, prevent operator error.

04.

Unique automatic parameter calculation function

• Input product lenght (mm) and throughput (pcs/min), calculates immediately by the exclusive automatic parameter calculation function.

05.

The most complete production management system

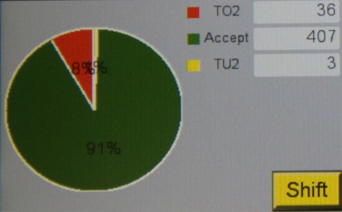

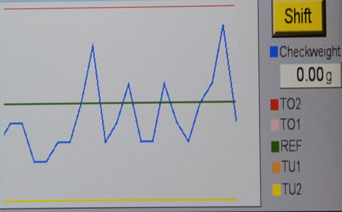

•. Product database stores up to 199 products . Instant display of weight upper and lower limit graph. . Summary graph includes histograms, and pie charts, can be converted to Excel file . Checkweighting parameters can be copied between products. . Create backup of product parameters and system parameters, in case of need.

06.

Authority and responsibility

. Divided into four levels, administrator, engineer, supervisor, and operator. . Add or remove users under each level. . Password protection prevents unauthorized access and change of parameter . Access rights are custom made for each level, avoid violating other user's rights.

07.

Checkweighing history data

. Stores checkweighing history data in machine interface or usb drive . Machine interface can store 2.3M piece of checkweighing data.

08.

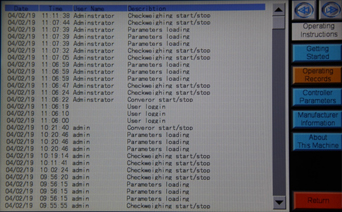

System operation history

•System will automatically record the user login time and parameter modification.

09.

Internet (Industry 4.0)

. Capable of communicating with external devices, providing intelligent industry 4.0 . Modbus RTU/TCP communication protocol for seamlessly integration. . Communication port includes RS-232, RS-485, ethernet, USB 2.0 . Built-in free agreement, select any of the communication items.

10.

Weight calibration

.Follow three steps according to the figure to complete the calibration procedure. .Operation is simple, fast and accurate.

11.

Interface language

•Many languages to choose from , English, Simplified Chinese, Traditional Chinese, ... .Interface language can be changed to accommodate customer needs.

12.

Process capability index

•.Immediate notification when system self-detects a fault for instant processing.

13.

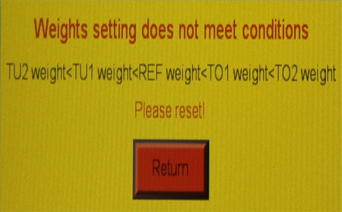

System error notification

•Immediate notification when system self-detects a fault for instant processing.



14.

Dynamic average compensation

•


15.

First-class workmanship, professional mechanical design

.Full stainless (SUS304) machine body, with brushed finish. .Electricial cabinet with internal hinge, cable tracks. .Conveyor platform with quick release

16.

Professional grade belt

•.Food and medical grade belt, easy to clean and maintain. .Ultra-thin, seamless bonding, stable operation at high speed.

17.

High-precision roller with professional fine workmanship

．



HANDWIN

OUR PRIZE

"Smart Machinery Product Competition" jointly implemented by the Taiwan Food and Pharmaceutical Machinery Industry Association (TFPMA) and the Precision Machinery Research and Development Center (PMC) .HANDWIN Precision has won the bronze award. According to TFPMA, the competition is to encourage the domestic food and pharmaceutical machinery industry to use the design and manufacturing technology to lead the development of intelligent machine research and development, and to promote the innovation and wisdom design into the research and development of food and pharmaceutical machinery products through competition. At the same time, it leads the industry to enhance the performance of intelligent systems, the concept of Internet of Things (IoT) Implementation, big data collection and feedback, robotics and automation applications, humanization and operation interface applications.

Learn More
Video Stuff

our product

HANDWIN PRECISION IND. CO., LTD. is a company specializing in manufacturing Checkweigher systems machines for the high tech industry as well as software research and development. Since its inception, our company focuses on checkweigher development technology. Since becoming involved with Checkweigher technology, we have been able help our customers grasp the various production conditions that require Checkweigher systems and software. To further assist our customers, the Checkweigher systems are available in several languages that include “Chinese, Simplified Chinese, English, Turkish and others languages as well. Currently, the Checkweigher has an accuracy level of 0.06g and a speed of 230 items per minute.There are few systems in the market that can match the high speed and accuracy of our checkweigher technology.

youtube youtube
Collect from hengwen

2

Number of exhibitions

23

number of customers

26

merchandise quantity

3

Number of government plans

1

Number of prizes

Applicable industry

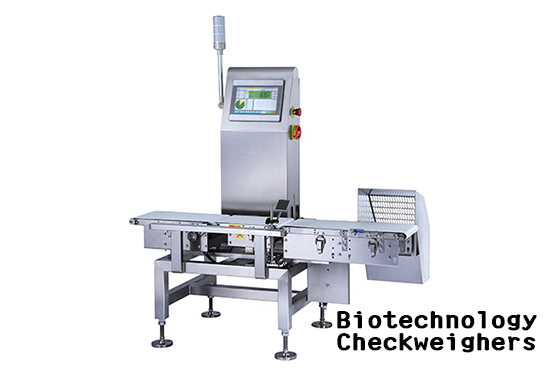

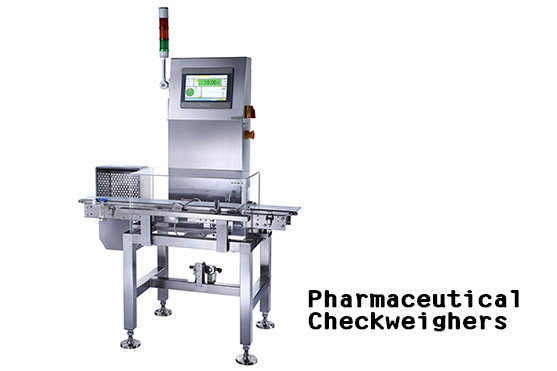

Helping you solve problems on the production line is your best choice ■ Applicable industries: food, pharmaceutical, beverage, biotechnology, chemistry, hardware and other industries ■ Applicable characteristics: carton, cup, bottle, can, bag, box, etc.


About HANDWIN

  • Business strategy

    Our company specializing in manufacturing Checkweigher systems machines for the high tech industry as well as software research and development . The dynamic automatic checkweigher is designed to check whether the individual products are shortage or missing in the manufacturing process of the production line, and the weight is overweight or underweight. The highest precision can be achieved to ±0.06g, and the maximum speed can reach to 230 per minute. High-speed series: up to 300 PCS accuracy per minute (±0.1g) HANDWIN's opened architecture design check weigher machine can be connected to many machines such as filling machines, metal detector, labeling machines, printing machines, printers, ERP and applications, and other operations, making your automated production line smoother. Helping you solve problems on the production line is your best choice. ■ Industry 4.0 ■ Applicable industries: food, pharmaceutical, beverage, biotechnology, chemistry, hardware and other industries ■ Applicable characteristics: carton, cup, bottle, can, bag, box, etc.

    Business philosophy

    ■The purpose of "Innovation" is to continuously create value for customers, and the company continues to innovate and develop to achieve sustainable operation. ■The advancement of "technology" is to meet the needs of customers and to continuously improve the PDCA to create products that meet market demand. ■The meaning of "trust" lies in "honesty", facing every customer with honesty and building on the basis of mutual trust.

Invitation

●2022 Singapore FHA Food & Beverage Show. Here warmly invite you to visit our stand. Date: 28 Mar –31 Mar 2022 Singapore Expo
2017 2018 2019 2021 2022

Checkweigher product

HA Series HS Series HL Series Filling Checkweighing System Rejector Series

HA Series HS Series HL Series Filling Checkweighing System
